Creates a ggplot of the x-y trajectory from an anipoint. One path is drawn per trajectory group, where a group is the combination of the frame's grouping columns (anicore::get_keys()): its identity columns and its temporal context, such as session or trial.

Usage

plot_trajectory(data, ...)

# Default S3 method
plot_trajectory(data, ..., mode = c("light", "dark"), palette = "Dark 3")

Arguments

data

An anipoint object.

...

Additional arguments (currently unused).

mode

Either "light" (default) or "dark"; passed to theme_animovement().

palette

Name of a qualitative palette accepted by grDevices::hcl.colors(); controls the hue family across grouping levels.

Value

A ggplot object.

Details

The positions are read from the columns the frame declares for its x and y axes (anicore::get_axes()), and time from its index column (anicore::get_index()), so neither has to be named x, y or time. The axes are labelled by role. A three-dimensional frame is drawn in its x-y plane. A frame without x and y axes, such as a polar one, is an error.

Colours adapt to the dataset shape:

  • single trajectory (no grouping): the line is coloured continuously by time using the Material gradient scale (scale_colour_material_c()), shown as a time colour bar.

  • what-only or when-only grouping (one varying axis): each line gets its own hue from a qualitative palette, with time mapped to alpha so the line fades in from start to end — shown in a time legend.

  • matrix grouping (both axes vary): each line is solid, coloured by the hue × shade matrix from palette_animovement() — hue per what, shade per when; time reads from the start/end markers.

Every trajectory is annotated with a filled circle at its first point and a filled triangle at its last point, identified in a start/end legend. Gaps from missing data are bridged with a dashed line so the path stays traceable.

Examples

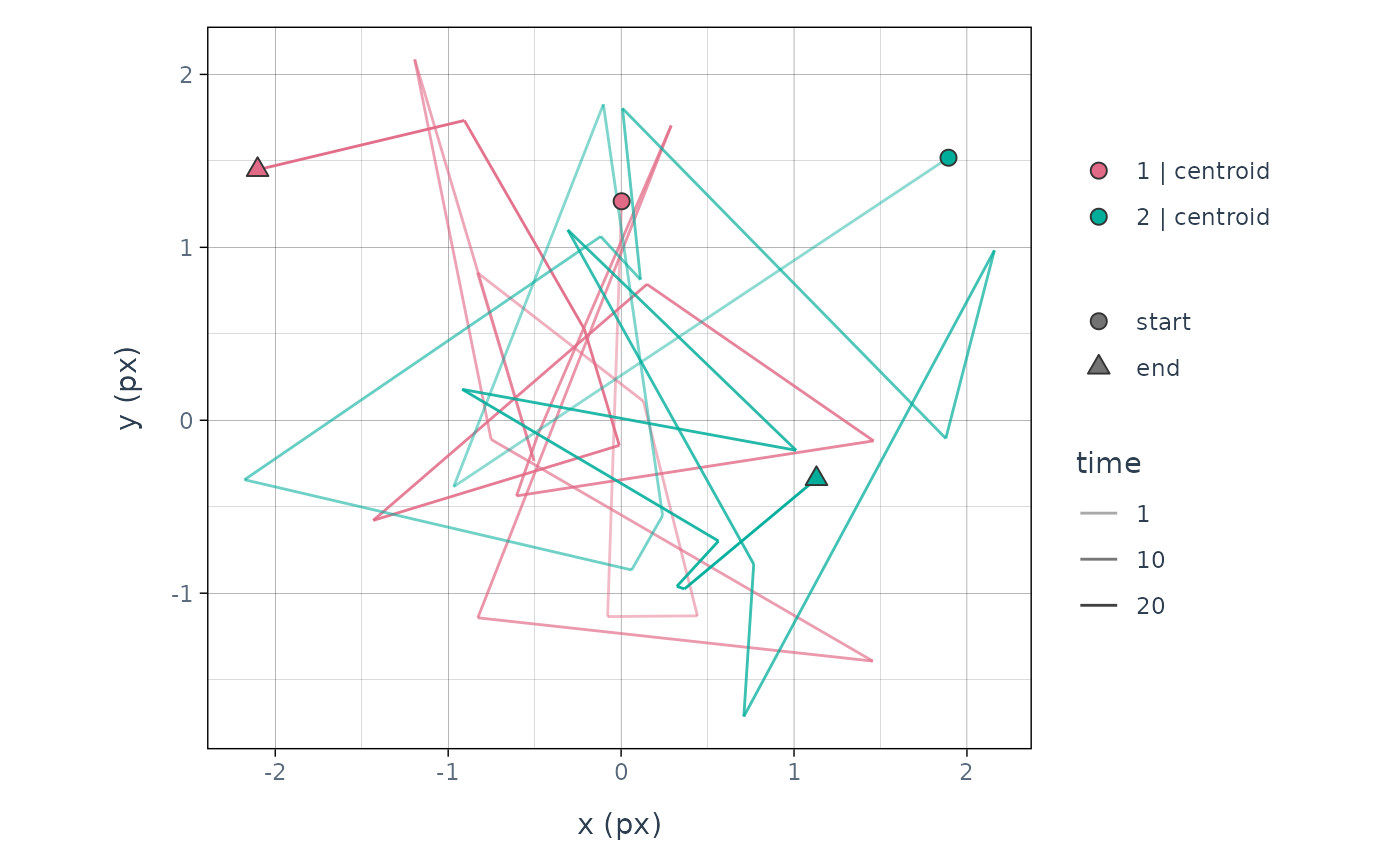

af <- anicore::example_anipoint(n_obs = 20, n_individuals = 2, n_keypoints = 1)
plot_trajectory(af)
