Plot State and Point Events

Source: R/plot_events.R
plot_events.Rd

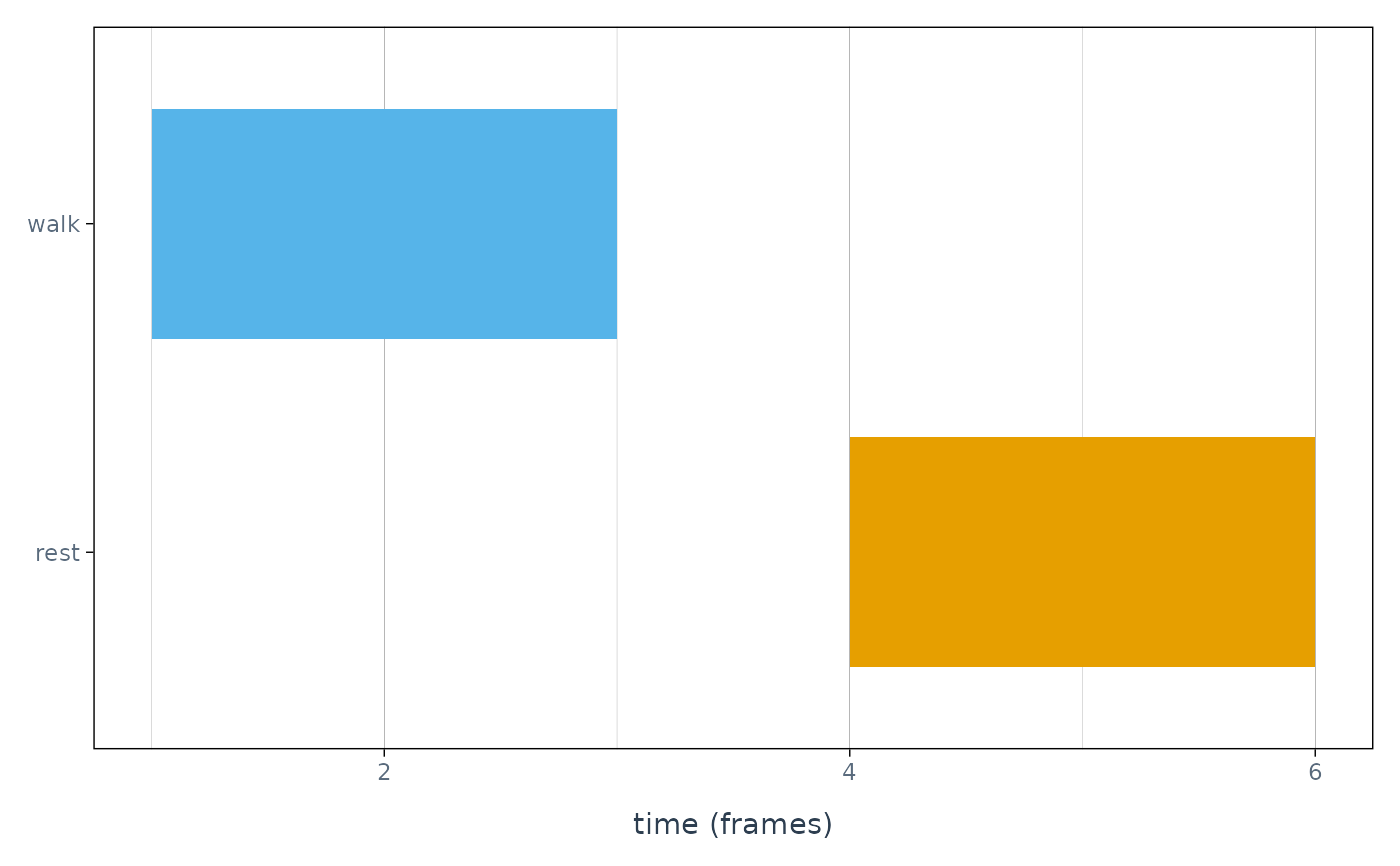

Creates a ggplot that overlays state events (durative bouts, drawn as horizontal bars by geom_event_state()) and point events (instantaneous occurrences, drawn as dots by geom_event_point()) on a shared time axis. Each behaviour label becomes a row on the y axis.

Usage

plot_events(data, ...)

# S3 method for class 'anievent'
plot_events(
  data,
  ...,
  layout = c("facet", "inline"),
  point_style = c("point", "raster"),
  mode = c("light", "dark")
)

# Default S3 method
plot_events(
  data = NULL,
  point = NULL,
  ...,
  point_style = c("point", "raster"),
  mode = c("light", "dark")
)

Arguments

data

An anievent object, or a data frame of state events for the default method.

...

Additional arguments (currently unused).

layout

For plot_events.anievent(): either "facet" (default, one y row per label with channels faceted) or "inline" (an ethogram — one y row per channel with labels in a colour legend).

point_style

How point events are drawn: "point" (default, dots) or "raster" (vertical ticks, the classic spike-raster look). Passed to geom_event_point().

mode

Either "light" (default) or "dark"; passed to theme_animovement().

point

For the default method only: an optional data frame of point events. Ignored by plot_events.anievent().

Value

A ggplot object.

Details

Two dispatches:

  • plot_events.anievent() — auto-detects which rows are states and which are points by reading the type column. The layout argument chooses how channels and labels are arranged:

    • "facet" (default): each label is a y-axis row, and multiple channels become facet rows (with free y-scales). Any variables_what column with more than one level adds a facet column per identity — facet_grid() when both vary, otherwise facet_wrap().

    • "inline" (ethogram): each channel is a single y-axis row and label moves to a colour legend, so all channels share one panel.

  • plot_events.default() — for callers without an anievent. Pass the state events as the first arg and the point events via point; either may be NULL. No automatic faceting.
